STM32WL5MOC

Multiprotocol LPWAN dual-core module 32-bit MCU

STM32WL5MOC Features

* Includes ST state-of-the-art patented technology. Integration of STM32WL55JC:

* Dual-core Arm® Cortex®-M0 and Arm® Cortex®-M4 CPU

* ART Accelerator with a speed of up to 48 MHz

* 256-Kbyte flash memory

* 64- Kbyte SRAM with sub-GHz radio transceiver

STM32WL5MOC General Description

functional overview, pin assignment and definition, electrical characteristics, packaging and ordering information. For further details on the STM32WL55 module, refer to the dedicated product datasheet (DS13293) and reference manual (RM0453). This document should be read with the multiprotocol LPWA.

STM32WL5MOC Datasheet (7.10 MB)

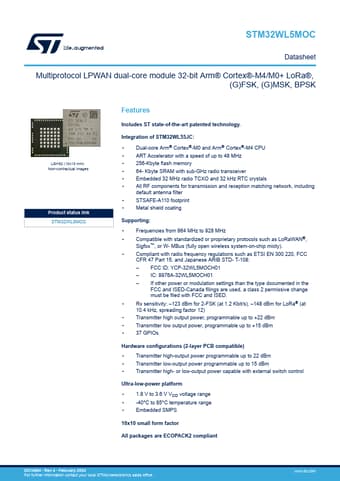

Preview of STM32WL5MOC PDF

Datasheet Details

Part number:

STM32WL5MOC

Manufacturer:

STMicroelectronics ↗

File Size:

7.10 MB

Description:

Multiprotocol lpwan dual-core module 32-bit mcu.
STM32WL5MOC Datasheet Multiprotocol LPWAN dual-core module 32-bit Arm® Cortex®-M4/M0+ LoRa®, (G)FSK, (G)MSK, BPSK LGA92 (10x10 mm) Non-contractual im.
