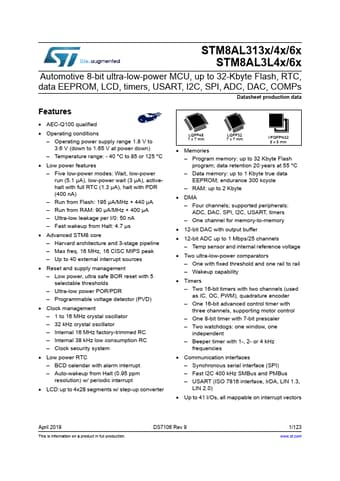

STM8AL3148, STM8AL3136 - Automotive 8-bit ultra-low-power MCU

STMicroelectronics

Datasheet Details

Part number	STM8AL3148, STM8AL3136
Manufacturer	STMicroelectronics
File Size	2.37 MB
Description	Automotive 8-bit ultra-low-power MCU
Datasheet	STM8AL3136-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM8AL3148, STM8AL3136. Please refer to the document for exact specifications by model.

. . 13 3.1 Low-power modes . .

AEC-Q100 qualified.
Operating conditions.
Operating power supply range 1.8 V to 3.6 V (down to 1.65 V at power down).
Temperature range: - 40 °C to 85 or 125 °C.
Low power features.
Five low-power modes: Wait, low-power run (5.1 μA), low-power wait (3 μA), activehalt with full RTC (1.3 μA), halt with PDR (400 nA).
Run from Flash: 195 μA/MHz + 440 μA.
Run from RAM: 90 μA/MHz + 400 μA.
Ultra-low leakage per I/0: 50 n.
