STNRG011A - PFC and time-shift LLC resonant controller

STNRG011A Description

STNRG011A Datasheet Digital combo multi-mode PFC and time-shift LLC resonant controller .
1 Description The STNRG011A embodies a multi-mode (transition-mode and DCM) PFC controller, a high- voltage doubleended controller for the LLC reso.

STNRG011A Features

* Product status link STNRG011A Product summary Order code STNRG011A STNRG011ATR Package SO20 Packing Tube Tape & Reel
* Digital combo multi-mode PFC + time-shift LLC resonant half-bridge controller
* Onboard 800 V startup circuit, line sense and X-cap discharge compliant with

STNRG011A Applications

* Open frame SMPS
* Flat screen TV SMPS
* ATX power supply

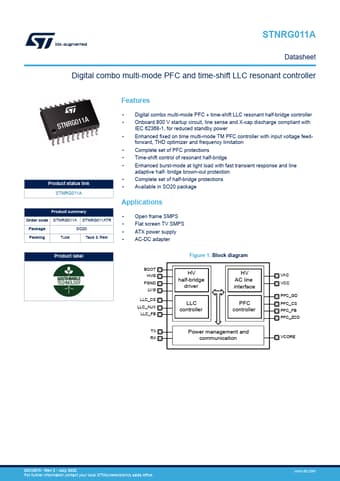

* AC-DC adapter Product label BOOT HVG FGND LV G LLC_CS LLC_AUX LLC_FB TX RX Figure 1. Block diagram HV half-bridge driver HV AC line interface LLC controller PFC controller Power management and commun
