STP32N65M5 - N-channel MOSFET

General Description

These devices are N-channel Power MOSFETs based on the MDmesh™ M5 innovative vertical process technology combined with the well-known PowerMESH™ horizontal layout.

Key Features

  • TAB 3 12 TO-220FP ) TAB t(s 3 c 2 TO-220 1 rodu D(2, TAB) lete P G(1) roduct(s) - Obso S(3) I2PAK 1 2 3 3 12 TO-247 Order codes VDS at Tjmax. RDS(on) max. ID STF32N65M5 STI32N65M5 STP32N65M5 710 V 119 mΩ 24 A STW32N65M5.
  • Extremely low RDS(on).
  • Low gate charge and input capacitance.
  • Excellent switching performance.
  • 100% avalanche tested Package TO-220FP I2PAK TO-220 TO-247 AM01475v1_noZen.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STP32N65M5 N-Channel MOSFET INCHANGE
STP32NM50N N-Channel MOSFET INCHANGE
STP300NH02L N-CHANNEL Power MOSFET ST Microelectronics
STP3010 Graphics Accelerator SUN MICROELECTRONICS
STP3015L N - CHANNEL POWER MOSFET ST Microelectronics

Other Datasheets by STMicroelectronics

Part Number Description
STP32N05L N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR
STP32N05LFI N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR
STP32N06L N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR
STP32N06LFI N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR
STP32NM50N N-channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

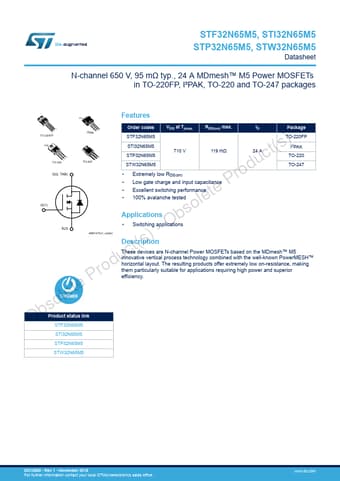

STF32N65M5, STI32N65M5 STP32N65M5, STW32N65M5 Datasheet N-channel 650 V, 95 mΩ typ., 24 A MDmesh™ M5 Power MOSFETs in TO-220FP, I²PAK, TO-220 and TO-247 packages Features TAB 3 12 TO-220FP ) TAB t(s 3 c 2 TO-220 1 rodu D(2, TAB) lete P G(1) roduct(s) - Obso S(3) I2PAK 1 2 3 3 12 TO-247 Order codes VDS at Tjmax. RDS(on) max. ID STF32N65M5 STI32N65M5 STP32N65M5 710 V 119 mΩ 24 A STW32N65M5 • Extremely low RDS(on) • Low gate charge and input capacitance • Excellent switching performance • 100% avalanche tested Package TO-220FP I2PAK TO-220 TO-247 AM01475v1_noZen Applications • Switching applications Description These devices are N-channel Power MOSFETs based on the MDmesh™ M5 innovative vertical process technology combined with the well-known PowerMESH™ horizontal layout.
