STPS16170CB, STPS16170C High voltage power Schottky rectifier

STPS16170CB Description

$ .$ ..$ $ .$ '3$.$ .STPS16170C High voltage power Schottky rectifier Datasheet  production data .
This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies.

STPS16170CB Features

* High junction temperature capability
* Good trade off between leakage current and forward voltage drop
* Low leakage current
* Avalanche capability specified
* ECOPACK®2 compliant component for DPAK and D²PAK on demand December 2015 This is information on a product in full pro

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS16170CB, STPS16170C. Please refer to the document for exact specifications by model.

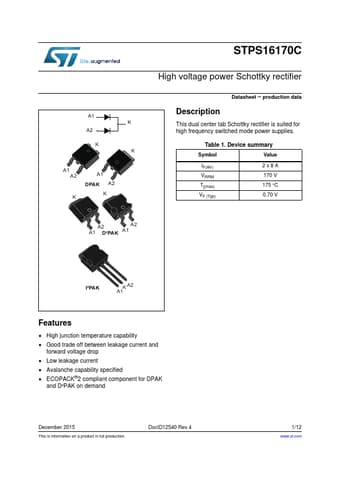

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS16170CB, STPS16170C
Manufacturer
STMicroelectronics ↗
File Size
266.58 KB
Datasheet
STPS16170C_STMicroelectronics.pdf
Description
High voltage power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS16170CB, STPS16170C.
Please refer to the document for exact specifications by model.
