STS5P3LLH6 Datasheet - STMicroelectronics

STS5P3LLH6 P-Channel Power MOSFET

This device is a P-channel Power MOSFET developed using the STripFET H6 technology with a new trench gate structure. The resulting Power MOSFET exhibits very low RDS(on) in all packages. Product status link STS5P3LLH6 Product summary Order code STS5P3LLH6 Marking 5K3L Package SO-8 Packing .

STS5P3LLH6 Datasheet (270.61 KB)

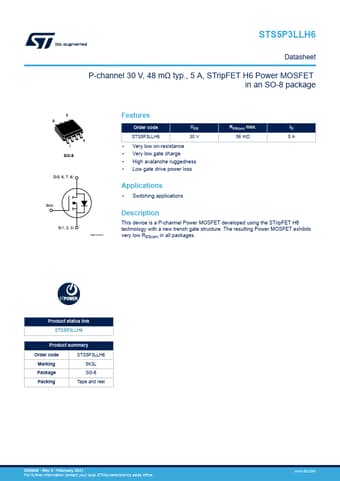

Preview of STS5P3LLH6 PDF

Datasheet Details

Part number:

STS5P3LLH6

Manufacturer:

STMicroelectronics ↗

File Size:

270.61 KB

Description:

P-channel power mosfet.
