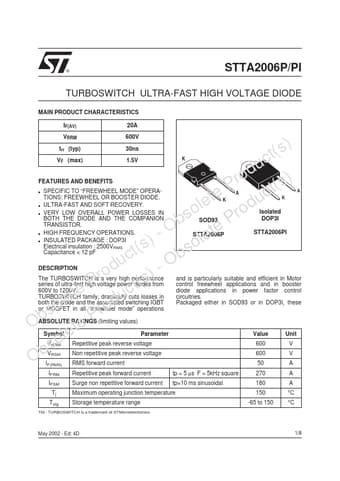

STTA2006PI Datasheet, Diode, STMicroelectronics

STTA2006PI Features

• Diode SPECIFIC TO ”FREEWHEEL MODE” OPERATIONS: FREEWHEEL OR BOOSTER DIODE. ULTRA-FAST AND SOFT RECOVERY. VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. HIGH FRE

PDF File Details

Part number:

STTA2006PI

Manufacturer:

STMicroelectronics ↗

File Size:

266.73kb

Download:

📄 Datasheet

Description:

Ultra-fast high voltage diode. The TURBOSWITCH is a very high performance series of ultra-fast high voltage power diodes from 600V to 1200V. TURBOSWITCH family, dra

STTA2006PI Application

• Applications nd in booster diode applications in power factor control circuitries. Packaged either in SOD93 or in DOP3I, these 600V devices are part
