STULED625H

N-channel Power MOSFET

STMicroelectronics

STULED625H Features

* Order codes VDS RDS(on) max ID PTOT )1 t(s2 3 TAB I²PAKFP roduc3 2 1 te PTO-220 TAB IPAK 3 2 1 oleFigure 1. Internal schematic diagram bsD(2,TAB) ct(s) - OG(1) lete ProduS(3) Obso AM01476v1 STFILED625H 25 W STPLED625H 620 V 2 Ω 6.0 A 70 W STULED625H

* 100% avalanche tested

STULED625H General Description

These Power MOSFETs boast extremely low onresistance and very good dv/dt capability, rendering them suitable for buck-boost and flyback topologies. Table 1. Device summary Order codes Marking Package Packaging STFILED625H I2PAKFP (TO-281) STPLED625H LED625H TO-220 Tube STULED625H IPAK .

STULED625H Datasheet (669.28 KB)

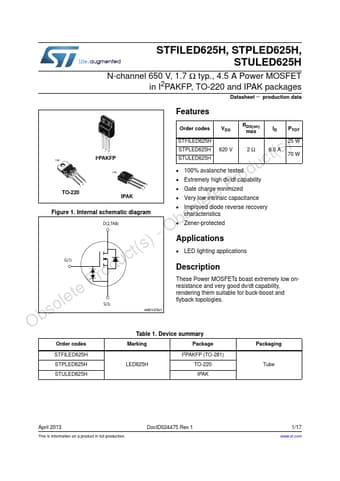

STULED625H Datasheet Preview — Preview of STULED625H PDF

Datasheet Details

Part number:

STULED625H

Manufacturer:

STMicroelectronics ↗

File Size:

669.28 KB

Description:

N-channel power mosfet.
STFILED625H, STPLED625H, STULED625H N-channel 650 V, 1.7 Ω typ., 4.5 A Power MOSFET in I2PAKFP, TO-220 and IPAK packages Datasheet

* productio.
