STV5342 Datasheet - STMicroelectronics

STV5342 TELETEXT DECODER

The STV5342 is a HCMOS integrated circuit which performs all the processing of logical data within a 625 lines system teletext decoder. It is designed to operate in conjunction with one-chip : the SAA5231 integrated chip which extracts Teletext information embedded in a composite video signal. Up to.
STV5342 TELETEXT DECODER WITH 4 INTEGRATED PAGES . COMPLETE TELETEXT DECODER INCLUD. ING ON-CHIP 4 PAGES MEMORY, REDUC- ING EMC RADIATIONS UPWARD SOFTWARE AND HARDWARE COMPATIBLE WITH PREVIOUS SGS-THOMSON’s DECODER SDA5243 . AUTOMATIC SELECTION OF UP TO SIX NATIONAL LANGUAGES . 4 SIMULTANEOUS PAGE REQUESTS . DISPLAY OF THE 25TH STATUS ROW . MICROPROCESSOR CONTROL VIA AN I2C BUS (SLAVE ADDRESS 0010001 R/W) . DATA ACQUISITION AVAILABLE FROM LINES 2 TO 22 OR FROM A COMPLETE FIELD . HIGH QUALITY D.

STV5342-STMicroelectronics.pdf

Preview of STV5342 PDF

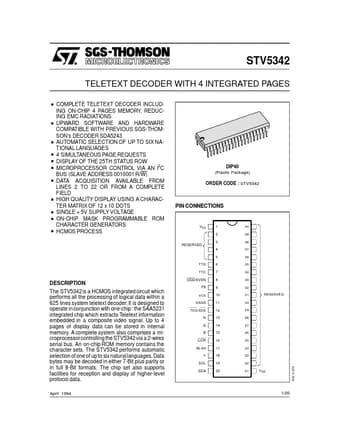

STV5342 Datasheet Preview Page 2 STV5342 Datasheet Preview Page 3

Datasheet Details

Part number:

STV5342

Manufacturer:

STMicroelectronics ↗

File Size:

515.52 KB

Description:

Teletext decoder.
