STV5345 - TELETEXT DECODER

Datasheet Summary

Description

The STV5345 is a

📥 Download Datasheet

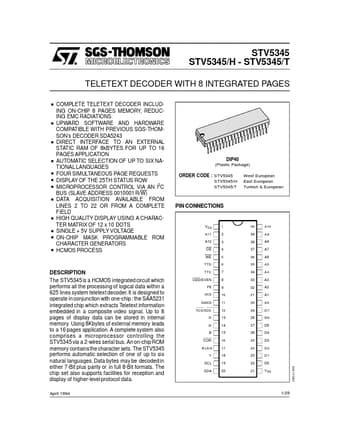

Datasheet preview – STV5345

Datasheet Details

Part number STV5345
Manufacturer STMicroelectronics
File Size 665.55 KB
Description TELETEXT DECODER
Datasheet download datasheet STV5345 Datasheet
Additional preview pages of the STV5345 datasheet.

📁 Similar Datasheet

  • STV5346 - MONOCHIP TELETEXT DECODER (ST Microelectronics)
  • STV5347 - MONOCHIP TELETEXT AND VPS DECODER WITH 4 INTEGRATED PAGES (ST Microelectronics)
  • STV5348 - MONOCHIP TELETEXT AND VPS DECODER (ST Microelectronics)
  • STV5109 - RGB High Voltage Video Amplifier (ST Microelectronics)
  • STV5111 - RGB HIGH VOLTAGE VIDEO AMPLIFIER (ST Microelectronics)
  • STV5112 - RGB HIGH VOLTAGE VIDEO AMPLIFIER (ETC)
  • STV5112 - RGB HIGH VOLTAGE VIDEO AMPLIFIER (SGS-THOMSON)
  • STV5112 - STV5112 (ETC)
  • STV5180 - CONTROL IC FOR SWITCH MODE POWER SUPPLY AND FOR LINE DEFLECTION (ST Microelectronics)
  • STV5712 - ADVANCED FM AUDIO PLAY-BACK AND RECORD AMPLIFIER FOR VCR (ST Microelectronics)
Other Datasheets by STMicroelectronics
  • STV5342 - TELETEXT DECODER
  • STV5725 - 4-HEAD PLAYBACK AND RECORD AMPLIFIER
  • STV5727 - 2-HEAD PLAYBACK AND RECORD AMPLIFIER
  • STV0297E - QAM demodulator
  • STV0498 - DOCSIS 2.0+ cable modem
  • STV0900 - Multistandard advanced dual demodulator
  • STV0903 - Multi-standard advanced demodulator
  • STV0910 - Multi-standard advanced dual demodulator

Full PDF Text Transcription

Click to expand full text
STV5345 STV5345/H - STV5345/T TELETEXT DECODER WITH 8 INTEGRATED PAGES . COMPLETE TELETEXT DECODER INCLUD. ING ON-CHIP 8 PAGES MEMORY, REDUC- ING EMC RADIATIONS UPWARD SOFTWARE AND HARDWARE . COMPATIBLE WITH PREVIOUS SGS-THOMSON’s DECODER SDA5243 DIRECT INTERFACE TO AN EXTERNAL STATIC RAM OF 8kBYTES FOR UP TO 16 PAGES APPLICATION . AUTOMATIC SELECTION OF UP TO SIX NATIONAL LANGUAGES . FOUR SIMULTANEOUS PAGE REQUESTS . DISPLAY OF THE 25TH STATUS ROW . MICROPROCESSOR CONTROL VIA AN I2C BUS (SLAVE ADDRESS 0010001 R/W) . DATA ACQUISITION AVAILABLE FROM LINES 2 TO 22 OR FROM A COMPLETE FIELD . HIGH QUALITY DISPLAY USING A CHARACTER MATRIX OF 12 x 10 DOTS . SINGLE + 5V SUPPLY VOLTAGE . ON-CHIP MASK PROGRAMMABLE ROM CHARACTER GENERATORS .
