STV8206

(STV82x6) Multistandard TV Audio Processor and Digital Sound Demodulator

STV8206 Features

* NICAM, AM, FM Mono and FM 2 Carrier Stereo Demodulators for all sound carriers between 4.5 and 7 MHz

* Mono input provided for optimum AM Demodulation performances

* Demodulation controlled by Automatic Standard Recognition System

* Sound IF AGC with wide range

* Overmodulation

STV8206 General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Overview 5 Typical Applications 6 I/O Pin Description 10 Chapter 2 2.1 2.2 www.DataSheet4U.com Demodulator Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STV8206 Datasheet (1.67 MB)

Preview of STV8206 PDF

Datasheet Details

Part number:

STV8206

Manufacturer:

STMicroelectronics ↗

File Size:

1.67 MB

Description:

(stv82x6) multistandard tv audio processor and digital sound demodulator.

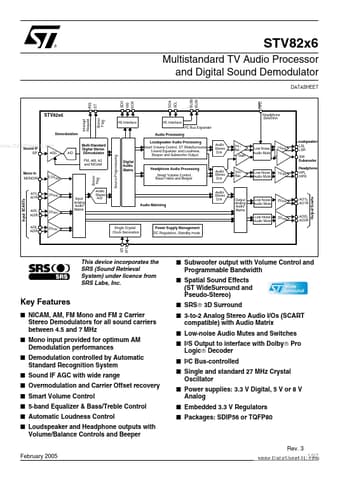

® STV82x6 Multistandard TV Audio Processor and Digital Sound Demodulator DATASHEET SDO WS SCK BUS0 BUS1 SDA SCL HPD Headphone Detection I²S Interface.
