STV8236 Datasheet PDF - STMicroelectronics (STV82x6) Multistandard TV Audio Processor and Digital Sound Demodulator Specs

STV8236 - (STV82x6) Multistandard TV Audio Processor and Digital Sound Demodulator

This page provides the datasheet information for the STV8236, a member of the STV8216 (STV82x6) Multistandard TV Audio Processor and Digital Sound Demodulator family.

Datasheet Summary

Description

Features

NICAM, AM, FM Mono and FM 2 Carrier Stereo Demodulators for all sound carriers between 4.5 and 7 MHz.
Mono input provided for optimum AM Demodulation performances.
Demodulation controlled by Automatic Standard Recognition System.
Sound IF AGC with wide range.
Overmodulation and Carrier Offset recovery.
Smart Volume Control.
5-band Equalizer & Bass/Treble Control.
Automatic Loudness Control.
Loudspeaker and Headphone outputs with Volume/Balance Contro.

Datasheet Details

Part number	STV8236
Manufacturer	STMicroelectronics
File Size	1.67 MB
Description	(STV82x6) Multistandard TV Audio Processor and Digital Sound Demodulator
Datasheet	STV8236 Datasheet
Additional preview pages of the STV8236 datasheet.

📁 Similar Datasheet

STV8203 - MULTISTANDARD TV SOUND DEMODULATOR (ST Microelectronics)

STV8211 - VIDEO & SOUND IF SYSTEM (ST Microelectronics)

STV8223A - MULTISTANDARD VIDEO AND SOUND IF SYSTEM (ST Microelectronics)

STV8223B - MULTISTANDARD VIDEO AND SOUND IF SYSTEM (ST Microelectronics)

STV8224A - MULTISTANDARD VIDEO AND SOUND IF SYSTEM (ST Microelectronics)

STV8224B - MULTISTANDARD VIDEO AND SOUND IF SYSTEM (ST Microelectronics)

STV8225 - AM SIF CIRCUIT (ST Microelectronics)

STV82x6 - Multistandard TV Audio Processor and Digital Sound Demodulator (ST Microelectronics)

STV80NE03L-06 - N - CHANNEL 30V - 0.005ohm - 80A - PowerSO-10 STripFET MOSFET (ST Microelectronics)

STV8131 - 5V AND 8V VOLTAGE REGULATOR (ST Microelectronics)

Full PDF Text Transcription

Click to expand full text

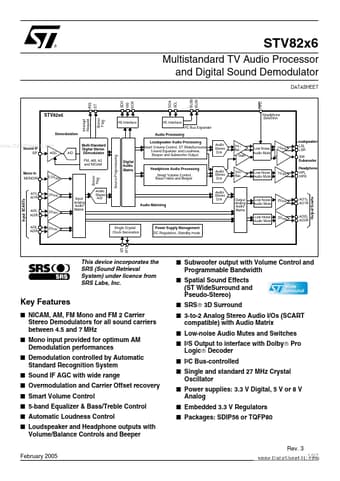

® STV82x6 Multistandard TV Audio Processor and Digital Sound Demodulator DATASHEET SDO WS SCK BUS0 BUS1 SDA SCL HPD Headphone Detection I²S Interface I²C Interface I²C Bus Expander Audio Processing Loudspeaker Audio Processing Multi-Standard Digital Stereo Demodulator FM, AM, A2 and NICAM Audio Stereo D/A Vol./ Bal. Gain Loudspeaker LSL LSR SW Subwoofer Headphone HPL HPR IRQ STV82x6 Interrupt Request Demodulation Stereo Flag www.DataSheet4U.com Sound IF SIF AGC A/D ST Source Preprocessing Smart Volume Control, ST WideSurround, 5-band Equalizer and Loudness, Beeper and Subwoofer Output Digital Audio Matrix Low Noise Audio Mute 1Vrms Headphone Audio Processing Smart Volume Control, Bass/Treble and Beeper 0.5Vrms Stereo Flag Mono In MONOIN Audio Stereo D/A Vol./ Bal.

Published: Sep 24, 2008 |
