T835 Datasheet - STMicroelectronics

logic level and standard 8A Triacs

T835 Features

* On-state rms current, IT(RMS) 8 A

* Repetitive peak off-state voltage, VDRM/VRRM 600 to 800 V

* Triggering gate current, IGT (Q1) 5 to 50 mA June 2014 This is information on a product in full production. DocID7472 Rev 8 1/18 www.st.com Characteristics 1 Characteristics

T835 General Description

Available either in through-hole or surface-mount packages, the BTA08, BTB08, T810, T835 is suitable for general purpose AC switching. It can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in l.

T835 Datasheet (268.87 KB)

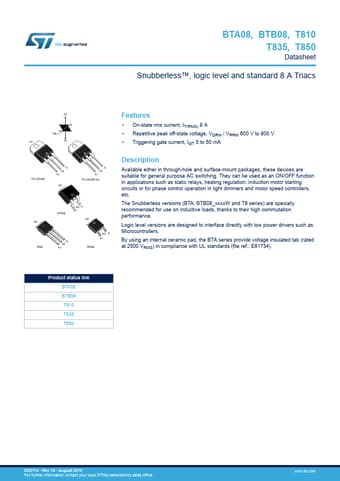

T835 Datasheet Preview — Preview of T835 PDF

Datasheet Details

Part number:

T835

Manufacturer:

STMicroelectronics ↗

File Size:

268.87 KB

Description:

Logic level and standard 8a triacs.
BTA08, BTB08, T810, T835 Snubberless™, logic level and standard 8 A Triacs A2 G A2 A1 A2 A1 A2 G TO-220AB A1 A2 G TO-220AB Insulated A1 A2 G .
