TDA2005, 20W bridge/stereo amplifier

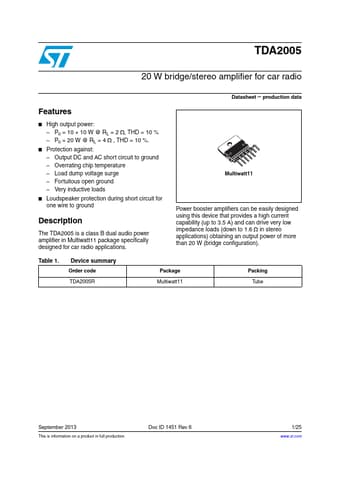

TDA2005 20 W bridge/stereo amplifier for car radio Datasheet  production data .
The TDA2005 is a class B dual audio power amplifier in Multiwatt11 package specifically designed for car radio applications.

datasheet Preview Page 1 from Datasheet4u.com

TDA2005-STMicroelectronics.pdf

TDA2005 Datasheet Preview — Preview of TDA2005 PDF

Datasheet Details

Part number:

TDA2005

Manufacturer:

STMicroelectronics ↗

File Size:

633.50 KB

Description:

20W bridge/stereo amplifier

Features

* High output power:
* Po = 10 + 10 W @ RL = 2 , THD = 10 %
* Po = 20 W @ RL = 4 , THD = 10 %.
* Protection against:
* Output DC and AC short circuit to ground
* Overrating chip temperature
* Load dump voltage surge
* Fortuitous open ground

Applications

* Multiwatt11 Power booster amplifiers can be easily designed using this device that provides a high current capability (up to 3.5 A) and can drive very low impedance loads (down to 1.6  in stereo applications) obtaining an output power of more than 20 W (bridge configuration). Table 1. Device su
