TL084AI JFET quad operational amplifiers

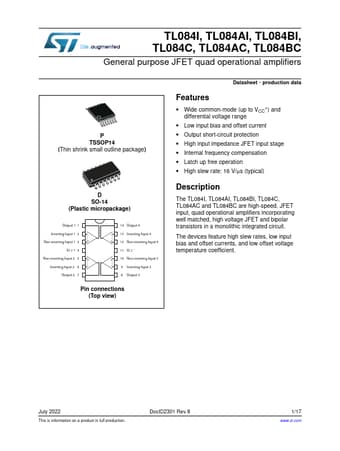

TL084I, TL084AI, TL084BI, TL084C, TL084AC, TL084BC General purpose JFET quad operational amplifiers P TSSOP14 (Thin shrink small outline package) D SO-14 (Plastic micropackage) Output 1 1 Inverting Input 1 2 Non-inverting Input 1 3 + VC C + 4 Non-inverting Input 2 5 + Inverting Input 2 6 - Output 2 7 14 Output 4 - 13 Inverting Input 4 + 12 Non-inverting Input 4 11 VC C - + 10 Non-inverting Input 3 - 9 Inverting Input 3 8 Output 3 Pin connections (Top view) Datasheet - production.

TL084AI Features

* Wide common-mode (up to VCC+) and differential voltage range

* Low input bias and offset current

* Output short-circuit protection

* High input impedance JFET input stage

* Internal frequency compensation

* Latch up free operation

* High slew

TL084I-STMicroelectronics.pdf
