TN805-700B Datasheet - STMicroelectronics

TN805-700B Sensitive and standard 8A SCRs

The TN805/TN815-B serie of Silicon Controlled Rectifiers uses a high performance TOPGLASS PNPN technology. These parts are intended for general purpose applications using mount technology. K A A G DPAK ABSOLUTE MAXIMUM RATINGS Symbol IT(RMS) IT(AV) ITSM Parameter RMS on-state current (180° condu.

TN805-700B_STMicroelectronics.pdf

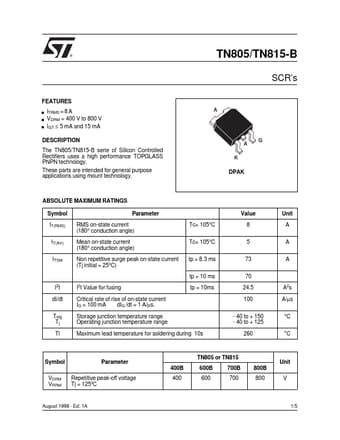

Preview of TN805-700B PDF
TN805-700B Datasheet Preview Page 2 TN805-700B Datasheet Preview Page 3

Datasheet Details

Part number:

TN805-700B

Manufacturer:

STMicroelectronics ↗

File Size:

74.57 KB

Description:

Sensitive and standard 8a scrs.
