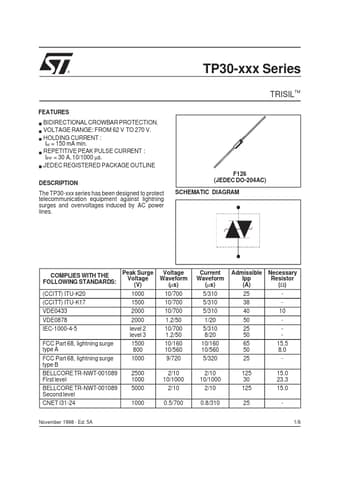

TP30-100

TRISIL

STMicroelectronics

TP30-100 Features

* BIDIRECTIONAL CROWBAR PROTECTION. VOLTAGE RANGE: FROM 62 V TO 270 V. HOLDING CURRENT : IH = 150 mA min. REPETITIVE PEAK PULSE CURRENT : IPP = 30 A, 10/1000 µs. JEDEC REGISTERED PACKAGE OUTLINE DESCRIPTION The TP30-xxx series has been designed to protect telecommunication equipment against lightning

TP30-100 General Description

The TP30-xxx series has been designed to protect telecommunication equipment against lightning surges and overvoltages induced by AC power lines. F126 (JEDEC DO-204AC) SCHEMATIC DIAGRAM COMPLIES WITH THE FOLLOWING STANDARDS: (CCITT) ITU-K20 (CCITT) ITU-K17 VDE0433 VDE0878 IEC-1000-4-5 FCC Part 68, .

TP30-100 Datasheet (61.76 KB)
