TPA120 - Trisil

Download the TPA120 datasheet PDF. This datasheet also covers the TPA62 variant, as both devices belong to the same trisil family and are provided as variant models within a single manufacturer datasheet.

Description

These Trisil series have been designed to protect telecommunication equipment against lightning and transient induced by AC power lines.

They are available in SMA, SMB and DO-15 packages.

Features

  • Bidirectional crowbar protection.
  • Voltage range from 62 V to 320 V.
  • Low capacitance from 12 pF to 20 pF @ 50 V.
  • Low leakage current : IR = 2 µA max.
  • Holding current: IH = 150 mA min.
  • Repetitive peak pulse current : IPP = 50 A (10/1000 µs) Main.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TPA62-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
TPA120 SOLID STATE TELECOMMUNICATION PROTECTION ARRESTOR TIAN YI
TPA1203DA 1W 3KVDC Isolated Single and Dual Output DC/DC Converters TOPPOWER
TPA1205D 1W 3KVDC Isolated Single and Dual Output DC/DC Converters TOPPOWER
TPA1205DA 1W 3KVDC Isolated Single and Dual Output DC/DC Converters TOPPOWER
TPA1205S 1W 3KVDC Isolated Single and Dual Output DC/DC Converters TOPPOWER

Other Datasheets by STMicroelectronics

Part Number Description
TPA100 Trisil
TPA130 Trisil
TPA180 Trisil
TPA200 Trisil
TPA220 Trisil

Full PDF Text Transcription

Click to expand full text

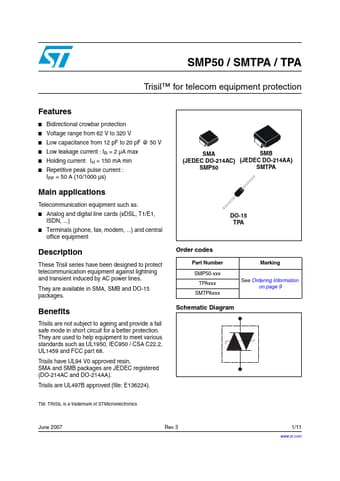

SMP50 / SMTPA / TPA Trisil™ for telecom equipment protection Features ■ Bidirectional crowbar protection ■ Voltage range from 62 V to 320 V ■ Low capacitance from 12 pF to 20 pF @ 50 V ■ Low leakage current : IR = 2 µA max ■ Holding current: IH = 150 mA min ■ Repetitive peak pulse current : IPP = 50 A (10/1000 µs) Main applications Telecommunication equipment such as: ■ Analog and digital line cards (xDSL, T1/E1, ISDN, ...) ■ Terminals (phone, fax, modem, ...) and central office equipment Description These Trisil series have been designed to protect telecommunication equipment against lightning and transient induced by AC power lines. They are available in SMA, SMB and DO-15 packages.
