TS4999 Datasheet - STMicroelectronics

Filter-free stereo 2.8W class D audio power amplifier

TS4999 Features

* Operates from VCC = 2.4 to 5.5 V

* Dedicated standby mode active low/channel

* Output power per channel: 2.8 W at 5 V into 4 Ω with 10% THD+N or 0.7 W at 3.6 V into 8 Ω with 1% THD+N max.

* Selectable 3D sound effect

* Four gain setting steps: 3.5, 6, 9.5 and 12 dB

* Low cu

TS4999 General Description

The TS4999 is a stereo fully-differential class D power amplifier. It can drive up to 1.35 W into a 8 Ω load at 5 V per channel. The device has four different gain settings utilizing two discrete pins, G0 and G1. Pop and click reduction circuitry provides low on/off switch noise while allowing the d.

TS4999 Datasheet (674.74 KB)

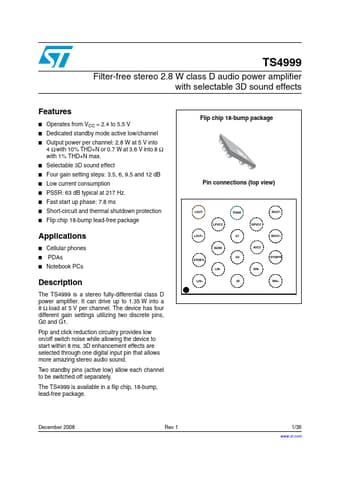

Preview of TS4999 PDF

Datasheet Details

Part number:

TS4999

Manufacturer:

STMicroelectronics ↗

File Size:

674.74 KB

Description:

Filter-free stereo 2.8w class d audio power amplifier.
