TS512A - Precision dual operational amplifiers

Download the TS512A datasheet PDF. This datasheet also covers the TS512 variant, as both devices belong to the same precision dual operational amplifiers family and are provided as variant models within a single manufacturer datasheet.

Description

The TS512x devices are high-performance dual operational amplifiers with frequency and phase compensation built into the chip.

The internal phase compensation allows stable operation in voltage follower configurations in spite of its high gain bandwidth product.

Features

  • Low input offset voltage: 500 µV max. (A version).
  • Low power consumption.
  • Short-circuit protection.
  • Wide power supply range:.
  • Single supply: 3 to 30 V.
  • Dual supplies: ±1.5 to ±15 V.
  • Low distortion, low noise.
  • High gain bandwidth product: 3 MHz.
  • High channel separation.
  • ESD protection 2 kV.
  • Macromodel included in this specification May 2017 This is information on a product in full production. Doc.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TS512-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
TS51221 High Efficiency Regulator IC Semtech
TS51231 High Efficiency Transmitter Driver Semtech
TS51111 High Efficiency Synchronous Rectifier and Charging IC Semtech
TS50P05G 600V - 1000V Standard Bridge Rectifier Taiwan Semiconductor
TS50P06G 600V - 1000V Standard Bridge Rectifier Taiwan Semiconductor

Other Datasheets by STMicroelectronics

Part Number Description
TS512 Precision dual operational amplifiers
TS512B Precision dual operational amplifiers
TS514 HIGH SPEED PRECISION QUAD OPERATIONAL AMPLIFIERS
TS514A HIGH SPEED PRECISION QUAD OPERATIONAL AMPLIFIERS
TS507 High precision rail-to-rail operational amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

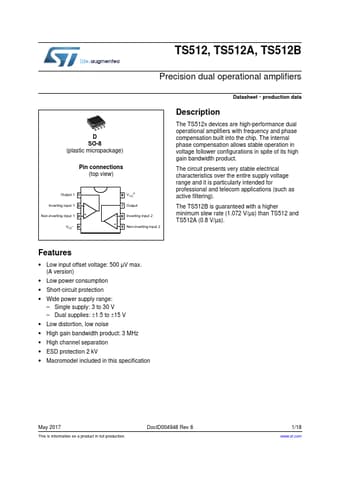

TS512, TS512A, TS512B Precision dual operational amplifiers D SO-8 (plastic micropackage) Pin connections (top view) 2XWSXW ,QYHUWLQJLQSXW  1RQLQYHUWLQJLQSXW  9&& 9&& 2 XWSXW   ,Q YHUWLQJLQSXW  1RQLQYHUWLQJLQSXW Datasheet - production data Description The TS512x devices are high-performance dual operational amplifiers with frequency and phase compensation built into the chip. The internal phase compensation allows stable operation in voltage follower configurations in spite of its high gain bandwidth product. The circuit presents very stable electrical characteristics over the entire supply voltage range and it is particularly intended for professional and telecom applications (such as active filtering).
