TSC1801 low-side current sense amplifier

TSC1801 Description

TSC1801 Datasheet Very high accuracy (0.5%) high bandwidth (2.1 MHz) bidirectional low-side current sense amplifier Maturity status link TSC1801 Fea.
The TSC1801 is a low-side current measurement amplifier.

TSC1801 Features

* Wide supply voltage range: 2.0 V to 5.5 V
* Fixed gain: 20 V/V
* Total output error < 0.5%
* Offset voltage: ±200 µV max.
* Gain error: 0.1% max.
* Bandwidth: 2.1 MHz
* Extended temperature range: -40 °C to +125 °C
* Automotive AEC-Q1

TSC1801 Applications

* High bandwidth low-side current sensing
* Low-side motor control
* Power management in Solar Powered Systems
* Power management in HEV and EV

📥 Download Datasheet

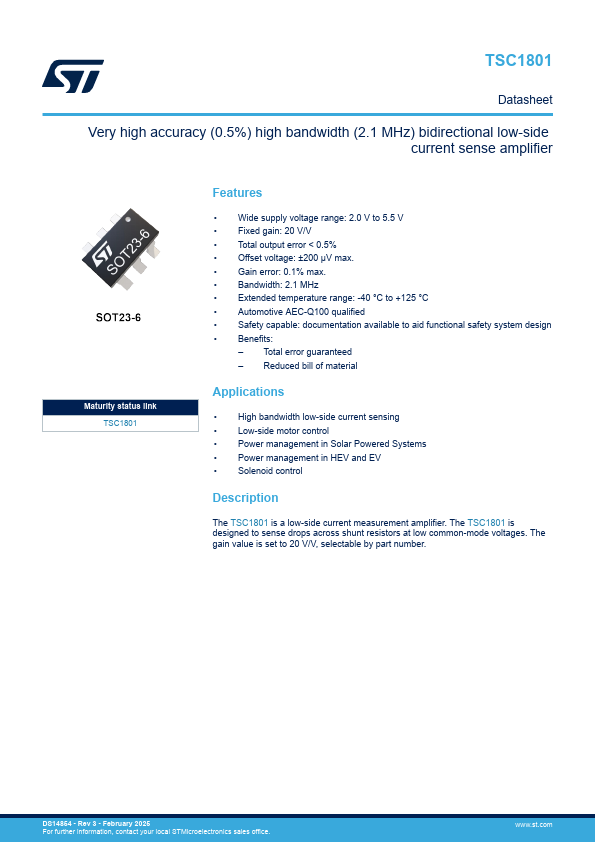

Preview of TSC1801 PDF

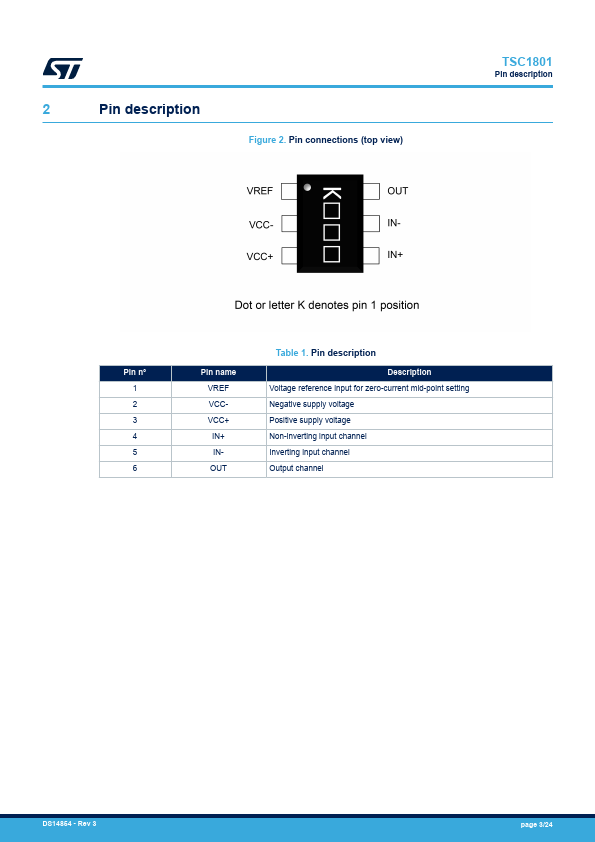

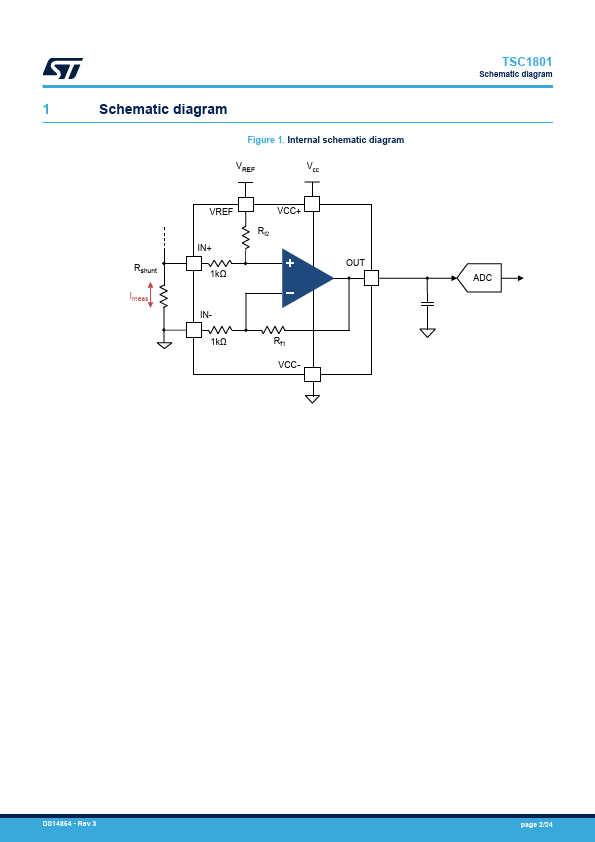

datasheet Preview Page 2 datasheet Preview Page 3
