TSC200 Datasheet, Amplifier, STMicroelectronics

TSC200 Features

  • Amplifier
  • Wide common mode voltage: -16 to 80 V
  • 2.7 to 18 V supply voltage
  • Amplification gain: 20 V/V
  • 0.6 V internal reference
  • Internal open-drai

PDF File Details

Part number:

TSC200

Manufacturer:

STMicroelectronics ↗

File Size:

2.48MB

Download:

📄 Datasheet

Description:

Current sense amplifier. The TSC200 is a high-side current sense amplifier which delivers an analog voltage output. It can sense current via a shunt resistor

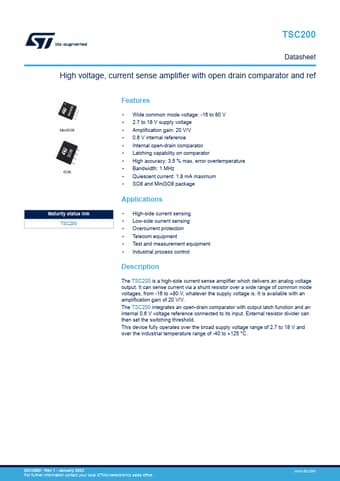

Datasheet Preview: TSC200 📥 Download PDF (2.48MB)
Page 2 of TSC200 Page 3 of TSC200

TSC200 Application

  • Applications
  • High-side current sensing
  • Low-side current sensing
  • Overcurrent protection
  • Telecom equipment
