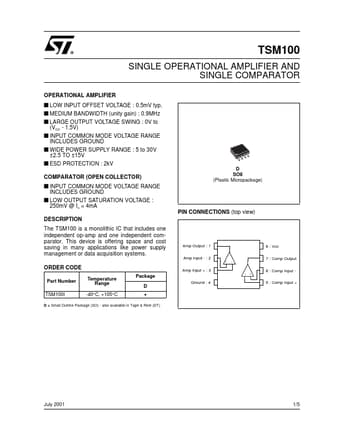

TSM100I
DESCRIPTION
The TSM100 is a monolithic IC that includes one independent op-amp and one independent parator. This device is offering space and cost saving in many applications like power supply management or data acquisition systems. ORDER CODE
Part Number TSM100I Temperature Range -40°C, +105°C Package D
- Ground : 4
Amp Output : 1 Amp Input
- : 2
8 : Vcc 7 : p Output
Amp Input + : 3
+
6 : p Input
- 5 : p Input +
D = Small Outline Package (SO)
- also available in Tape & Reel (DT)
July 2001
+
1/5
TSM100
ABSOLUTE MAXIMUM RATINGS
Symbol VCC Vid Vi Toper Tj Tl Rthja Supply Voltage Differential Input Voltage Input Voltage Operating Free-air Temperature Range Maximum Junction Temperature Maximum Lead Temperature (10 seconds maximum) Thermal Resistance Junction to Ambient Parameter Value 32 32 -03. to +32 -40 to +105 150 260 175 Unit V V V °C °C °C °C/W
ELECTRICAL CHARACTERISTICS
Symbol ICC Parameter Total Supply Current Vcc+ = 5V, no load Vcc+ = 30V, no load Min. Typ. 0.9 Max....
