TSZ124IY, TSZ121 - Very high accuracy zero drift micropower 5V operational amplifiers

STMicroelectronics

📥 Download Datasheet

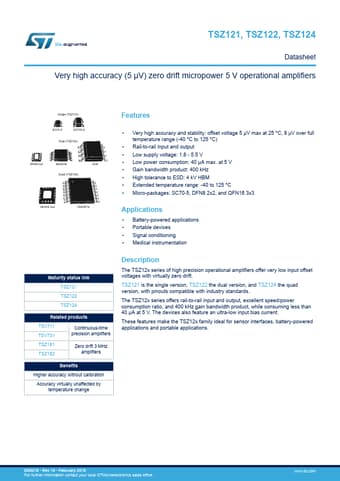

TSZ124IY Datasheet Preview — This datasheet PDF includes multiple part numbers: TSZ124IY, TSZ121. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TSZ124IY, TSZ121
Manufacturer	STMicroelectronics ↗
File Size	1.39 MB
Description	Very high accuracy zero drift micropower 5V operational amplifiers
Datasheet	TSZ121-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: TSZ124IY, TSZ121. Please refer to the document for exact specifications by model.

TSZ124IY Product details

Description

The TSZ12x series of high precision operational amplifiers offer very low input offset voltages with virtually zero drift.

Features

SC70-5 SOT23-5 Dual (TSZ122) DFN8 2x2 MiniSO8 Quad (TSZ124) SO8.
Very high accuracy and stability: offset voltage 5 µV max at 25 °C, 8 µV over full temperature range (-40 °C to 125 °C).
Rail-to-rail input and output.
Low supply voltage: 1.8 - 5.5 V.
Low power consumption: 40 µA max. at 5 V.
Gain bandwidth product: 400 kHz.
High tolerance to ESD: 4 kV HBM.
Extended temperature range: -40 to 125 °C.
Micro-packages: SC70.
