VIPER12A-E Datasheet, switcher equivalent, STMicroelectronics

Page 1 of VIPER12A-E Page 2 of VIPER12A-E Page 3 of VIPER12A-E
  • Preview is limited to a maximum of three pages.

PDF File Details

Part number: VIPER12A-E

Manufacturer: STMicroelectronics (https://www.st.com/)

File Size: 495.65KB

Download: 📄 Datasheet

Description: Low power offline switched-mode power supply primary switcher

📥 Download PDF (495.65KB) Datasheet Preview: VIPER12A-E

PDF File Details

Part number: VIPER12A-E

Manufacturer: STMicroelectronics (https://www.st.com/)

File Size: 495.65KB

Download: 📄 Datasheet

Description: Low power offline switched-mode power supply primary switcher

VIPER12A-E Features and benefits


* Fixed 60 kHz switching frequency
* 9 V to 38 V wide range VDD voltage
* Current mode control
* Auxiliary undervoltage lockout with hysteresis
* High.

VIPER12A-E Application

cover off line power supplies for battery charger adapters, standby power supplies for TV or monitors, auxiliary supplie.

VIPER12A-E Description

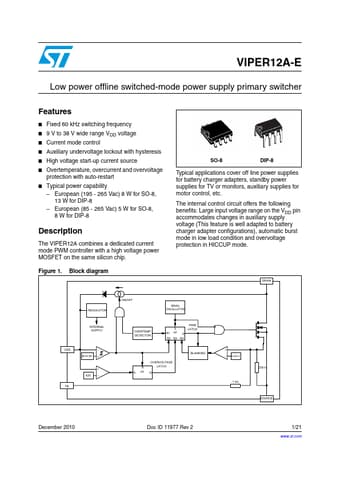

The VIPER12A combines a dedicated current mode PWM controller with a high voltage power MOSFET on the same silicon chip. Figure 1. Block diagram SO-8 DIP-8 Typical applications cover off line power supplies for battery charger adapters, standby po.
