VIPer100ASP-E, VIPer100A-E Fixed frequency off-line converter

VIPer100ASP-E Description

VIPer100A-E VIPer100ASP-E SMPS PRIMARY I.C.General .
VIPer100A-E/ASP-E, made using VIPower M0 Technology, combines on the same silicon chip a state-of-the-art PWM circuit together with an optimized, hig.

VIPer100ASP-E Features

* Type VIPer100A-E/ASP-E VDSS 700V In RDS(on) 3A 2.8 Ω
* ADJUSTABLE SWITCHING FREQUENCY UP TO 200 kHz
* CURRENT MODE CONTROL
* SOFT START AND SHUTDOWN CONTROL
* AUTOMATIC BURST MODE OPERATION IN STAND-BY CONDITION ABLE TO MEET “BLUE ANGEL” NORM (

VIPer100ASP-E Applications

* cover offline power supplies with a secondary power capability of 50W in wide range condition and 100W in single range or with doubler configuration. It is compatible from both primary or secondary regulation loop despite using around 50% less components when compared with a discrete solution. Burst

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VIPer100ASP-E, VIPer100A-E. Please refer to the document for exact specifications by model.

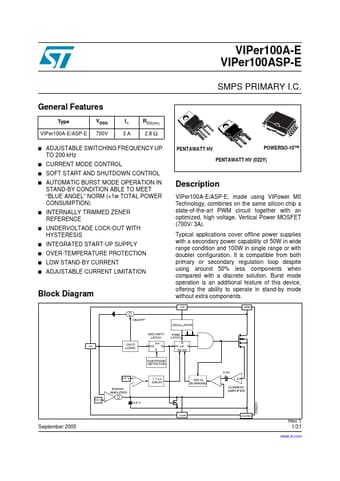

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VIPer100ASP-E, VIPer100A-E
Manufacturer
STMicroelectronics ↗
File Size
339.81 KB
Datasheet
VIPer100A-E-STMicroelectronics.pdf
Description
Fixed frequency off-line converter
Note
This datasheet PDF includes multiple part numbers: VIPer100ASP-E, VIPer100A-E.
Please refer to the document for exact specifications by model.
