VIPer22AS-E Datasheet, Switcher, STMicroelectronics

✔ VIPer22AS-E Features

Fixed 60 kHz switching frequency
9 V to 38 V wide range VDD voltage
Current mode control
Auxiliary undervoltage lockout with hysteresis
High voltage start-up cu

✔ VIPer22AS-E Application

cover off line power supplies for battery charger adapters, standby power supplies for TV or monitors, auxil

PDF File Details

STMicroelectronics manufacturer logo and representative part image

Part number:

VIPer22AS-E

Manufacturer:

STMicroelectronics ↗

File Size:

373.77kb

Download:

📄 Datasheet

Description:

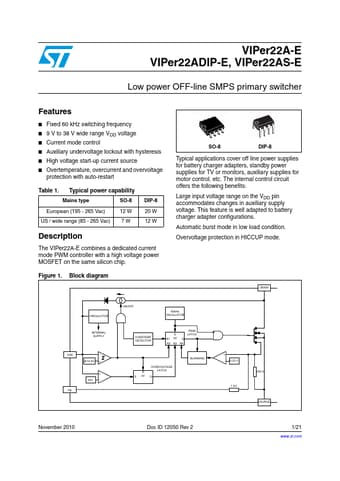

Low power off-line smps primary switcher. The VIPer22A-E combines a dedicated current mode PWM controller with a high voltage power MOSFET on the same silicon chip. Figure 1.
