VIPer50ASP-E, VIPer50A-E Datasheet - STMicroelectronics

VIPer50ASP-E SMPS PRIMARY I.C.

VIPer50A-E/ASP-E, made using VIPower M0 Technology, combines on the same silicon chip a state-of-the-art PWM circuit together with an optimized, high voltage, Vertical Power MOSFET (700V/ 1.5A). Typical applications cover offline power supplies with a secondary power capability of 25W in wide range .

VIPer50ASP-E Features

* Type VIPer50A-E/ASP-E VDSS 700V In 1.5A RDS(on) 5.7Ω 10 1

* ADJUSTABLE SWITCHING FREQUENCY UP TO 200 kHz

* CURRENT MODE CONTROL

* SOFT START AND SHUTDOWN CONTROL

* AUTOMATIC BURST MODE OPERATION IN STAND-BY CONDITION ABLE TO MEET “BLUE ANGEL” NORM (

VIPer50A-E-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: VIPer50ASP-E, VIPer50A-E. Please refer to the document for exact specifications by model.

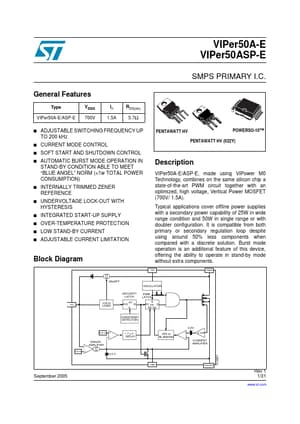

VIPer50ASP-E Datasheet Preview Page 2 VIPer50ASP-E Datasheet Preview Page 3

Datasheet Details

Part number:

VIPer50ASP-E, VIPer50A-E

Manufacturer:

STMicroelectronics ↗

File Size:

307.62 KB

Description:

Smps primary i.c..

Note:

This datasheet PDF includes multiple part numbers: VIPer50ASP-E, VIPer50A-E.
Please refer to the document for exact specifications by model.
