VIPer53-E - OFF-line Primary Switch

STMicroelectronics

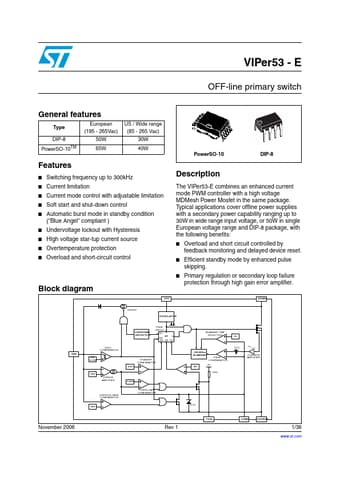

VIPer53-E Datasheet Preview — Preview of VIPer53-E PDF

Datasheet Details

Part number	VIPer53-E
Manufacturer	STMicroelectronics ↗
File Size	336.00 KB
Description	OFF-line Primary Switch
Datasheet	VIPer53-E-STMicroelectronics.pdf

VIPer53-E Product details

Description

The VIPer53-E combines an enhanced current mode PWM controller with a high voltage MDMesh Power Mosfet in the same package. Overload and short circuit controlled by feedback monitoring and

Features

Type European (195 - 265Vac) DIP-8 50W PowerSO-10TM 65W US / Wide range (85 - 265 Vac) 30W 40W PowerSO-10 DIP-8 Features.
Switching frequency up to 300kHz.
Current limitation.
Current mode control with adjustable limitation.
Soft start and shut-down control.
Automatic burst mode in standby condition (“Blue Angel“ compliant ).
Undervoltage lockout with Hysteresis.
HIgh voltage star-tup current source.
Overtemperature protection.
Overload and.
