VL53L5CX

Time-of-Flight 8x8 multizone ranging sensor

VL53L5CX Features

* Fast and accurate multizone distance ranging sensor

* Multizone ranging output with either 4x4 or 8x8 separate zones

* Autonomous low-power mode with interrupt programmable threshold to wake up the host

* Up to 400 cm ranging

* Multitarget detection and dist

VL53L5CX General Description

The VL53L5CX is a state of the art, Time-of-Flight (ToF), multizone ranging sensor enhancing the ST FlightSense product family. Housed in a miniature reflowable package, it integrates a SPAD array, physical infrared filters, and diffractive optical elements (DOE) to achieve the best ranging performa.

VL53L5CX Datasheet (2.47 MB)

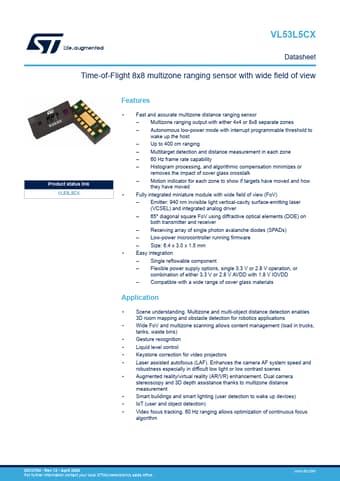

Preview of VL53L5CX PDF

Datasheet Details

Part number:

VL53L5CX

Manufacturer:

STMicroelectronics ↗

File Size:

2.47 MB

Description:

Time-of-flight 8x8 multizone ranging sensor.
