VN7004AH-E

high-side driver

VN7004AH-E Features

* Octapak ("1($'5

* Protections

* Undervoltage shutdown

* Overvoltage clamp

* Load current limitation

* Self limiting of fast thermal transients

* Loss of ground and loss of VCC

* Reverse battery

* Electrostatic discharge protectio

VN7004AH-E General Description

The VN7004AH-E is a single channel high-side driver manufactured using ST proprietary VIPower® technology and housed in the Octapak package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics. The devic.

VN7004AH-E Datasheet (417.54 KB)

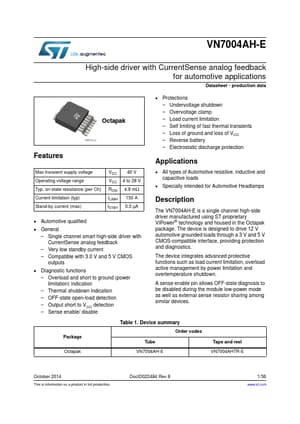

Preview of VN7004AH-E PDF

Datasheet Details

Part number:

VN7004AH-E

Manufacturer:

STMicroelectronics ↗

File Size:

417.54 KB

Description:

High-side driver.
