VNI4140K Datasheet - STMicroelectronics

VNI4140K Quad high side smart power solid state relay

The VNI414K (for loads up to 0.6 A) and VNI4140K-32 (for loads up to 1.0 A) are monolithic 4-channel drivers featuring very low RDS(on) and per-channel diagnostic. The ICs, realized in STMicroelectronics™ VIPower™ technology, are intended to drive any kind of load with one side connected to ground. .

VNI4140K Features

* Operating output current: 0.6 A (VNI4140K) or 1.0 A (VNI4140K-32) per channel

* Per channel short-circuit protection

* Per channel overtemperature protection

* Thermal case protection

* Not simultaneous channel reactivation at Thermal case reset

* Al

VNI4140K Datasheet (1.33 MB)

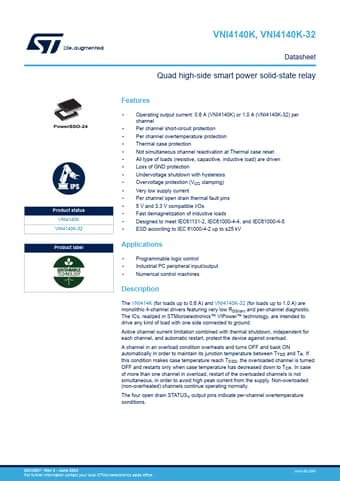

Preview of VNI4140K PDF

Datasheet Details

Part number:

VNI4140K

Manufacturer:

STMicroelectronics ↗

File Size:

1.33 MB

Description:

Quad high side smart power solid state relay.
