VNV14N04 - fully autoprotected Power MOSFET

STMicroelectronics

The VNV14N04 by STMicroelectronics is a fully autoprotected Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

VNV14N04 fully autoprotected Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **VNV14N04** fully autoprotected Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	VNV14N04
Manufacturer	STMicroelectronics
File Size	548.06 KB
Description	fully autoprotected Power MOSFET
Datasheet	VNV14N04_STMicroelectronics.pdf

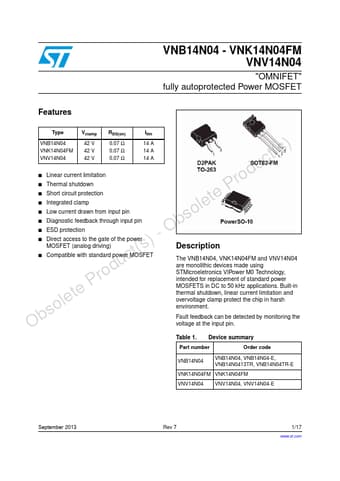

Additional preview pages of the VNV14N04 datasheet.

VNV14N04 Product details

Description

The VNB14N04, VNK14N04FM and VNV14N04 are monolithic devices made using STMicroeletronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 kHz applications.

Features

Type Vclamp RDS(on) Ilim VNB14N04 t(s)VNK14N04FM VNV14N04 42 V 42 V 42 V 0.07 Ω 0.07 Ω 0.07 Ω 14 A 14 A 14 A ducs Linear current limitation ros Thermal shutdown Ps Short circuit protection tes Integrated clamp oles Low current drawn from input pin ss Diagnostic feedback through input pin Obs ESD protection -s Direct access to the gate of the power )MOSFET (analog driving) Obsolete Product(ss Compatible with standard power MOSFET.
