VX6854LC

QXGA EDOF camera module

VX6854LC Features

* 3.15 megapixel resolution sensor (2048 x1536)

* Extended Depth of Field (EDOF)

* Compact size: 6.5 x 6.5 x 4.6mm

* SMIA Profile 2 compliant

* MIPI(a) CSI-2 (v0.9 D-PHY) and SMIA CCP2 video data interface

* CCI command interface 100 KHz up to 400 KHz

VX6854LC General Description

The VX6854LC 3 megapixel camera module is designed to be used for high quality still camera function and also supports video modes. The camera silicon device is SMIA 1.0 profile 2 compliant and is capable of generating raw bayer 3 Mpixel images up to 20 fps. The VX6854LC supports the CCI control and.

VX6854LC Datasheet (1.88 MB)

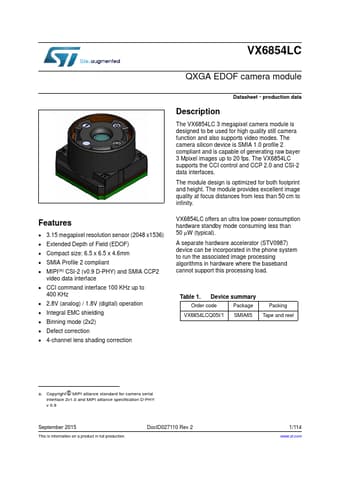

Preview of VX6854LC PDF

Datasheet Details

Part number:

VX6854LC

Manufacturer:

STMicroelectronics ↗

File Size:

1.88 MB

Description:

Qxga edof camera module.
