GBJ802

The GBJ802 is GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER designed by STS.

Product Overview

📥 Download Datasheet

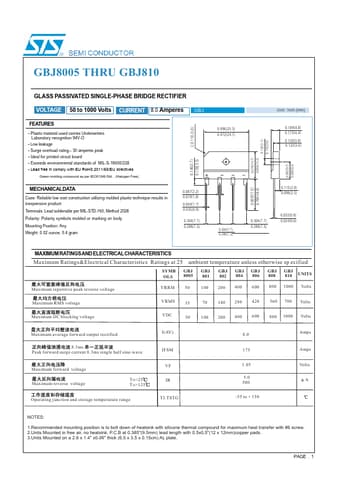

GBJ802 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER by STS - Datasheet Preview — Datasheet preview – GBJ802

Datasheet Details

Part number	GBJ802, GBJ8005
Manufacturer	STS
File Size	1.34 MB
Description	GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	GBJ8005-STS.pdf
Note	This datasheet PDF includes multiple part numbers: GBJ802, GBJ8005. Please refer to the document for exact specifications by model.
Additional preview pages of the GBJ802 datasheet.

Product details

Features

Plastic material used carries Underwriters Laboratory recognition 94V-O.
Low leakage.
Surge overload rating-- 30 amperes peak.
Ideal for printed circuit board.
Exceeds environmental standards of MIL-S-19500/228.
Lead free in comply with EU RoHS 2011/65/EU directives Green molding compound as per IEC61249 Std. . (Halogen Free) 0.146(3.7) 0.129(3.3).
