NS681680 10/100Base-T Single Port Transformer

10/100Base-T Single Port Transformer Module P/N：NS681680 ★ Designed to meet IEEE802.3u requirement ★ Lead-Free & Designed to meet RoHS requirement ★ Designed to meet IR 255℃ peak Requirement. ★ Primary inductance 350μH min. ★ Low Profile package for CardBus Application ★ Operating temperature range: 00C to +700C ★ Storage temperature range: 00C to +850C Part Number Turn Ratio Tx Rx Electrical Specifications @ 250C Insertion Loss 1~100MHz (dB Max) Return Loss (dB Min) 30MHz 50MHz 80MHz 30M.

NS681680 Datasheet (197.54 KB)

Preview of NS681680 PDF

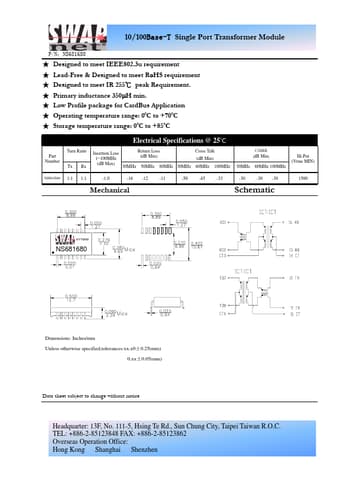

NS681680 Datasheet Preview Page 2 NS681680 Datasheet Preview Page 3

Datasheet Details

Part number:

NS681680

Manufacturer:

SWAP

File Size:

197.54 KB

Description:

10/100base-t single port transformer.
