NS892407 Datasheet - SWAP

NS892407 10/100/1000Base-T Single Port Transformer Module

10/100/1000Base-T Single Port Transformer Module P/N: NS892407 ★ Designed to meet IEEE802.3ab requirement ★ Lead-Free & Designed to meet RoHS requirement ★ Designed to meet IR 255℃ peak Requirement. ★ Primary inductance 350μH min. with 8mA DC Bias ★ Single Port for NIC Application ★ Operating temperature range: 00C to +700C ★ Storage temperature range: 00C to +850C Part Number Electrical Specifications @25℃ Turn Ratio Insertion Return Loss Cross Talk DCMR Hi-Pot Loss 1~100MHz (dB Min).

NS892407 Datasheet (246.80 KB)

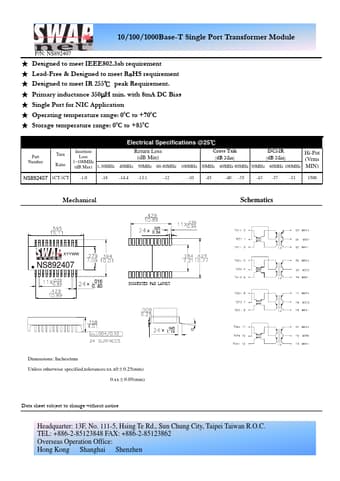

NS892407 Datasheet Preview — Preview of NS892407 PDF

Datasheet Details

Part number:

NS892407

Manufacturer:

SWAP

File Size:

246.80 KB

Description:

10/100/1000base-t single port transformer module.
