XESD2FD12V Datasheet - SXSEMI

XESD2FD12V Transient Voltage Suppressors

XESD2FD12V Discription The XESD2FD12V is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium. Applications l Cellular phones audio l MP3 players l Digital cameras l Portable app.

XESD2FD12V Features

* l Small Body Outline Dimensions: 0.039″ x 0.024″(1.0 mm x 0.60 mm) l Low Body Height: 0.020″ (0.50 mm) Max l Stand

* off Voltage: 3.3 V

* 12 V l Low Leakage l Response Time is Typically < 1 ns l ESD Rating of Class 3 (> 16 kV) per Human Body Model l IEC61000

* 4

* 2 Level

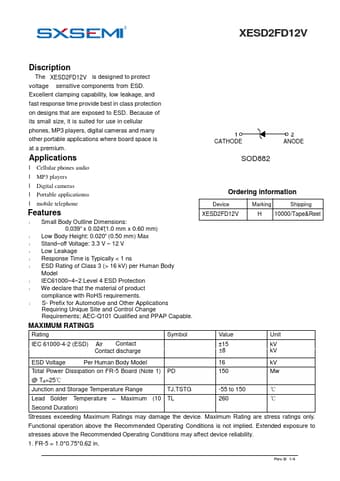

XESD2FD12V Datasheet (409.85 KB)
