LED-180-10199

INFRARED REMOTE CONTROL RECEIVER MODULE

LED-180-10199 Features

* Photo detector and preamplifier in one package Internal band filter for PCM frequency Internal shielding against electrical field disturbance TTL and CMOS compatibility Output active low Small size package Special Features Supply voltage 5.5 V Short settling time after power on High envelope duty c

LED-180-10199 General Description

A miniaturized receiver for infrared remote control and IR data transmission. PIN diode and preamplifier are assembled on lead frame. The epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the operation with high dat.

LED-180-10199 Datasheet (347.38 KB)

Preview of LED-180-10199 PDF

Datasheet Details

Part number:

LED-180-10199

Manufacturer:

SYC

File Size:

347.38 KB

Description:

Infrared remote control receiver module.

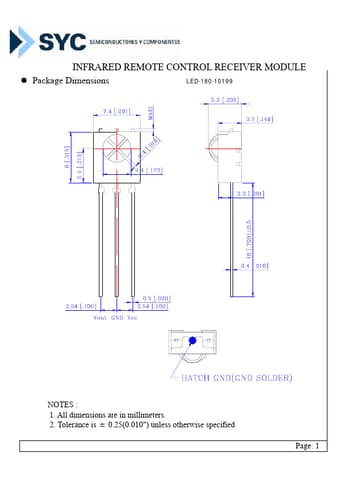

INFRARED REMOTE CONTROL RECEIVER MODULE Package Dimensions LED-180-10199 NOTES : 1. All dimensions are in millimeters. 2. Tolerance is ± 0.25(0.010").
