SP431

High Voltage Adjustable Precision Shunt Regulators

SP431 Features

* Low Output Noise

* Adjustable Output Voltage, VO=Vref to 36V

* Low Operational Cathode Current

* 0.25Ω Typical Output Impedance PIN CONFIGURATION ( SOT-23 ) ( SOT-89 ) ( TO-92 ) ( SOT-23 ) PART MARKING ( SOT-89 ) ( TO-92 ) 2020/01/02 Ver.7 Page 1 SP431 High Voltage Adjust

SP431 General Description

The SP431 is high-voltage three-terminal adjustable voltage references, with specified thermal stability over applicable industrial and commercial temperature ranges. Output voltage can be set to any value between VREF (2.5V) and 36V with two external resistors. These devices have a typical output i.

SP431 Datasheet (500.78 KB)

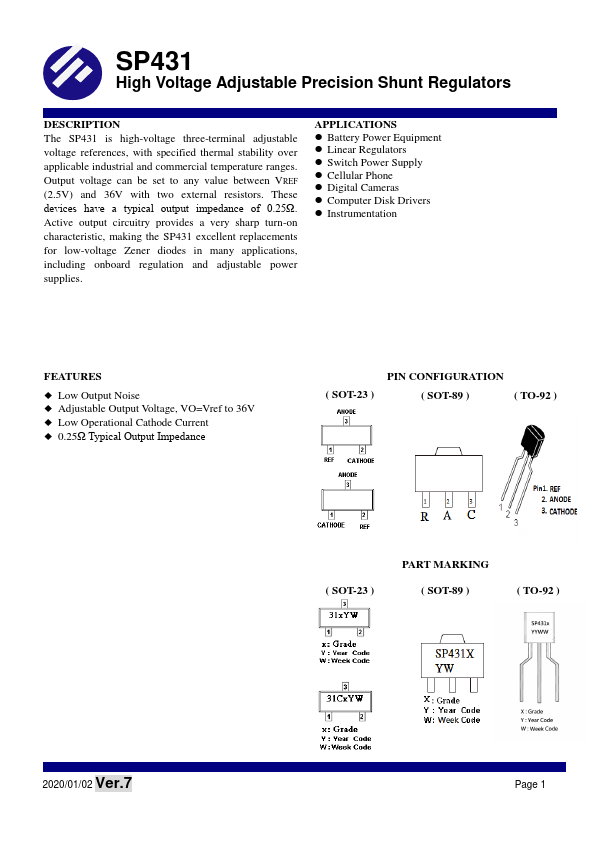

Preview of SP431 PDF

Datasheet Details

Part number:

SP431

Manufacturer:

SYNC POWER

File Size:

500.78 KB

Description:

High voltage adjustable precision shunt regulators.

📁 Related Datasheet

SP43 SMD Power Inductors (Yue Fat)

SP43 SMD Power Inductor (CODACA)

SP43-100K SMD Power Inductor (CODACA)

SP43-101K SMD Power Inductor (CODACA)

SP43-102K SMD Power Inductor (CODACA)

SP43-120K SMD Power Inductor (CODACA)

SP43-121K SMD Power Inductor (CODACA)

SP43-150K SMD Power Inductor (CODACA)

SP43-151K SMD Power Inductor (CODACA)

SP43-180K SMD Power Inductor (CODACA)

TAGS

SP431 High Voltage Adjustable Precision Shunt Regulators SYNC POWER

Image Gallery

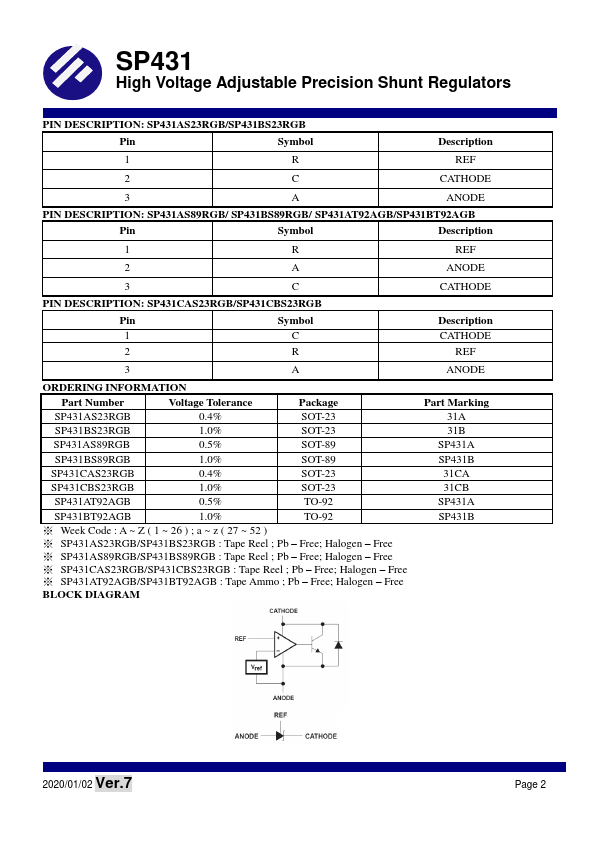

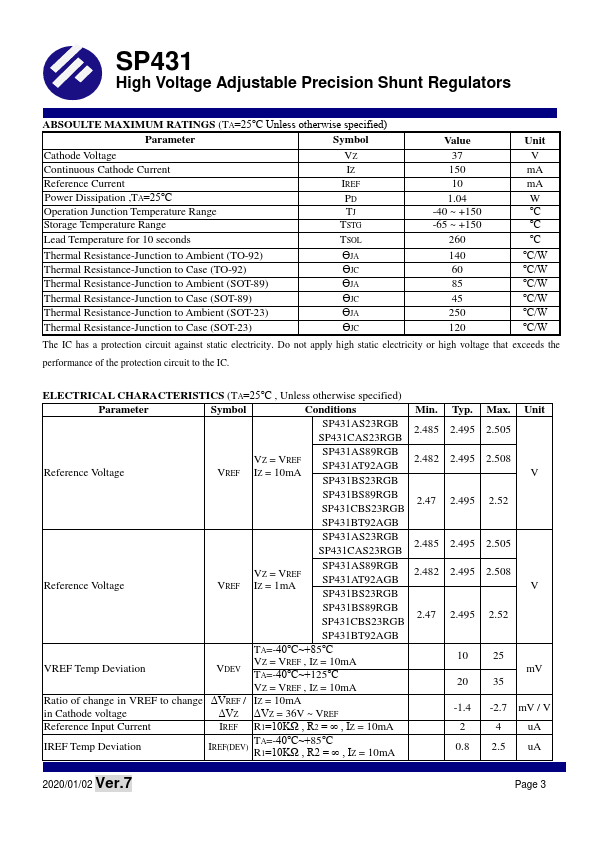

SP431 Datasheet Preview Page 2 SP431 Datasheet Preview Page 3
