SPP3401W Datasheet - SYNC POWER

P-Channel MOSFET

SPP3401W Features

* -30V/-4.0A,RDS(ON)=70mΩ@VGS=-10V

* -30V/-3.2A,RDS(ON)=90mΩ@VGS=-4.5V

* -30V/-1.2A,RDS(ON)=115mΩ@VGS=-2.5V

* Super high density cell design for extremely low RDS(ON)

* Exceptional on-resistance and maximum DC current capability

* SOT-23 package design PIN CONFIGURATION(SOT-

SPP3401W General Description

The SPP3401W is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such .

SPP3401W Datasheet (316.95 KB)

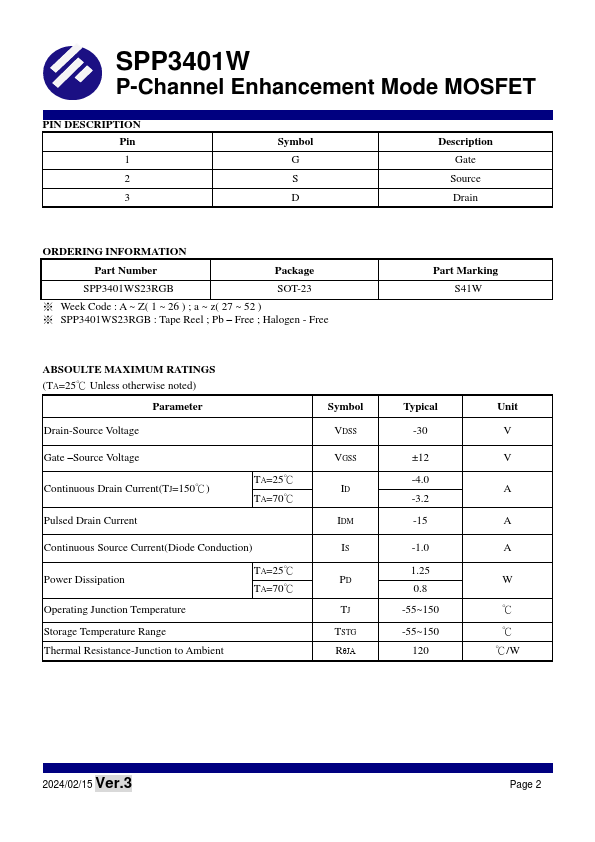

SPP3401W Datasheet Preview — Preview of SPP3401W PDF

Datasheet Details

Part number:

SPP3401W

Manufacturer:

SYNC POWER

File Size:

316.95 KB

Description:

P-channel mosfet.
