ST413KA - Crystal Clock Oscillator

A crystal controlled, low-current oscillator providing precise rise and fall times to drive ACMOS/LVCMOS loads.

The tri-state function enables the output to go high impedance.

Available in either a 14 or an 8 pin DIP compatible, resistance welded, all metal case.

Pin 7 ( or Pin 4 ) is grounded to ca

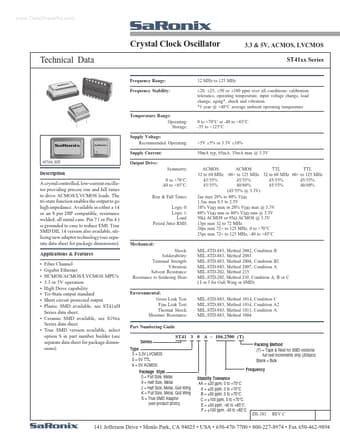

www.DataSheet4U.com SaRonix Crystal Clock Oscillator 3.3 & 5V, ACMOS, LVCMOS ST41xx Series Technical Data Frequency Range: Frequency Stability: 32 MHz to 125 MHz ±20, ±25, ±50 or ±100 ppm over all conditions: calibration tolerance, operating temperature, input voltage change, load change, aging , shock and vibration.

1 year @ +40°C average ambient operating temperature 0 to +70°C or -40 to +85°C -55 to +125°C Temperature Range: Operating: Storage: Supply Voltage: Recommended Operati

ST413KA Features

* Fiber Channel Gigabit Ethernet HCMOS/ACMOS/LVCMOS MPU's 3.3 or 5V operation High Drive capability Tri-State output standard Short circuit protected output Plastic SMD available, see ST41xH Series data sheet.

* Ce
