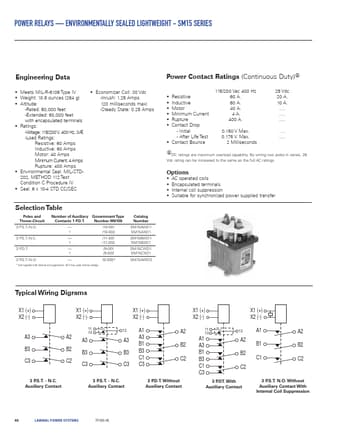

SM15
POWER RELAYS
- ENVIRONMENTALLY SEALED LIGHTWEIGHT
- SM15 SERIES
Engineering Data
- Meets MIL-R-6106 Type IV
- Weight: 10.5 ounces (284 g)
- Altitude: -Rated: 50,000 feet -Extended: 80,000 feet with encapsulated terminals
- Ratings: -Voltage: 115/200 V, 400 Hz, 3Æ -Load Ratings: Resistive: 60 Amps Inductive: 60 Amps Motor: 40 Amps Minimum Current: 4 Amps Rupture: 400 Amps
- Environmental Seal: MIL-STD- 202, METHOD 112 Test Condition C Procedure IV
- Seal: 6 x 10-4 STD CC/SEC
- Economizer Coil: 30 Vdc -Inrush: 1.25 Amps
(20 milliseconds max) -Steady State: 0.25 Amps
Selection Table
Poles and
Number of Auxiliary Government Type
Throw-Circuit
Contacts 1 P.D.T. Number M6106
3 P.S.T.-N.O.
- /10-001 1 /10-002
3 P.S.T.-N.C.
- /11-001 1 /11-002
3 P.D.T.
- /9-001 1 /9-002
3 P.S.T.-N.O.
- 10-005-
- Unit supplied with internal coil suppression. 45 V max. peak inverse voltage.
