KA8329B

3-Phase Capstan Motor Driver

KA8329B Features

* 3-phase, full-wave, linear BLDC motor driver with 3 hall sensors

* Built-in TSD(Thermal Shutdown) circuit

* Built-in torque ripple control circuit

* Built-in output current limiter

* Motor speed control

* High output current

* Built-in FG amp

KA8329B General Description

www.DataSheet4U.com Pin No. Symbol I/O 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Description Pin No. 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 Symbol VCC1 CI ILIM VCTL VREF FGIN1 GND GND GND GND FGIN2 FGIN3 FGOUT1 FGOUT2 TRCTL F/RCTL I/O I I I I I I O O I I Description Supply voltage(signal.

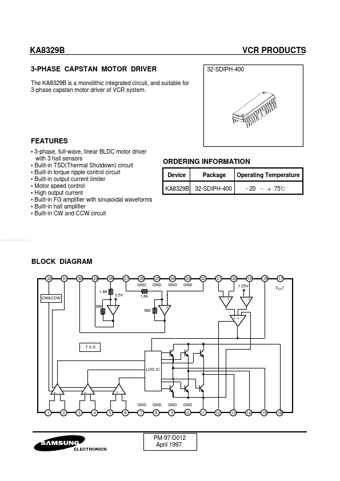

KA8329B Datasheet (129.14 KB)

Preview of KA8329B PDF

Datasheet Details

Part number:

KA8329B

Manufacturer:

Samsung Electronics

File Size:

129.14 KB

Description:

3-phase capstan motor driver.
KA8329B 3-PHASE CAPSTAN MOTOR DRIVER The KA8329B is a monolithic integrated circuit, and suitable for 3-phase capstan motor driver of VCR system. VCR.
