M53230400DW0 - (M532304x0DB0/DW0) DRAM Module

Download the M53230400DW0 datasheet PDF. This datasheet also covers the M53230400DB0 variant, as both devices belong to the same (m532304x0db0/dw0) dram module family and are provided as variant models within a single manufacturer datasheet.

Description

The Samsung M5323040(1)0D is a 4Mx32bits Dynamic RAM high density memory module.

The Samsung M5323040(1)0D consists of eight CMOS 4Mx4bits DRAMs in 24-pin SOJ package mounted on a 72-pin glass-epoxy substrate.

Features

  • Part Identification - M53230400DW0-C(4096 cycles/64ms Ref, SOJ, Solder) - M53230400DB0-C(4096 cycles/64ms Ref, SOJ, Gold) - M53230410DW0-C(2048 cycles/32ms Ref, SOJ, Solder) - M53230410DB0-C(2048 cycles/32ms Ref, SOJ, Gold).
  • Extended Data Out.
  • CAS-before-RAS refresh capability.
  • RAS-only and Hidden refresh capability.
  • TTL compatible inputs and outputs.
  • Single +5V±10% power supply.
  • 1st Gen. JEDEC standard PDPin & pinout.
  • PCB.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M53230400DB0_SamsungSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
M53 Triple-Balanced Mixer Tyco Electronics
M5300 JIGH RELIABILITY CURRENT REGULATOR DIODES Microsemi
M5301 JIGH RELIABILITY CURRENT REGULATOR DIODES Microsemi
M5302 JIGH RELIABILITY CURRENT REGULATOR DIODES Microsemi
M5303 JIGH RELIABILITY CURRENT REGULATOR DIODES Microsemi

Other Datasheets by Samsung Semiconductor

Part Number Description
M53230400DB0 (M532304x0DB0/DW0) DRAM Module
M53230400CB0 (M532304x0CB0/CW0) DRAM Module
M53230400CW0 (M532304x0CB0/CW0) DRAM Module
M53230404BT0-C (M53230404BT0/BY0) DRAM Module
M53230404BY0 (M53230404BT0/BY0) DRAM Module

Full PDF Text Transcription

Click to expand full text

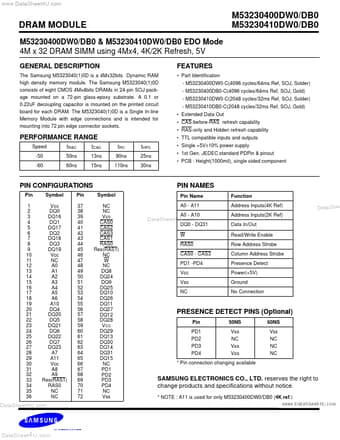

www.DataSheet4U.com DRAM MODULE M53230400DW0/DB0 & M53230410DW0/DB0 EDO Mode 4M x 32 DRAM SIMM using 4Mx4, 4K/2K Refresh, 5V GENERAL DESCRIPTION The Samsung M5323040(1)0D is a 4Mx32bits Dynamic RAM high density memory module. The Samsung M5323040(1)0D consists of eight CMOS 4Mx4bits DRAMs in 24-pin SOJ package mounted on a 72-pin glass-epoxy substrate. A 0.1 or 0.22uF decoupling capacitor is mounted on the printed circuit board for each DRAM. The M5323040(1)0D is a Single In-line Memory Module with edge connections and is intended for mounting into 72 pin edge connector sockets.
