M965G0115MP0

1M X 64 Sgram Sodimm Based on 1M X 32 / 2K Refresh

M965G0115MP0 Features

* Mode) Refresh Current ICC3P ICC3PS ICC3N ICC3NS mA ICC4 mA 2 ICC5 400 360 320 300 4 460 400 340 300 300 Note : 1. Unless otherwise notes, Input level is CMOS(VIH/VIL=VDDQ/VSSQ) in LVTTL. 2. Measured with outputs open. Address are changed only one time during tcc(min). 3. Refresh period is 32m

M965G0115MP0 General Description

The Samsung M965(6)G0115MP(Q)0 is a 1M bit x 64 Synchronous Graphic RAM high density memory module. The Samsung M965(6)G0115MP(Q)0 consists of two CMOS 1M x 32 bit Synchronous Graphic RAMs in 100pin QFP packages www.DataSheet4U.com mounted on a 144pin glass-epoxy substrate. Five 0.1uF decoupling cap.

M965G0115MP0 Datasheet (157.30 KB)

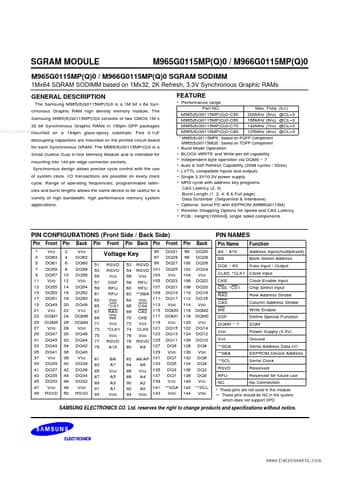

Preview of M965G0115MP0 PDF

Datasheet Details

Part number:

M965G0115MP0

Manufacturer:

Samsung Semiconductor

File Size:

157.30 KB

Description:

1m x 64 sgram sodimm based on 1m x 32 / 2k refresh.
SGRAM MODULE M965G0115MP(Q)0 / M966G0115MP(Q)0 M965G0115MP(Q)0 / M966G0115MP(Q)0 SGRAM SODIMM 1Mx64 SGRAM SODIMM based on 1Mx32, 2K Refresh, 3.3V Sy.
