62256, 32Kx8 bit Low Power CMOS Static RAM

The KM62256C family is fabricated by SAMSUNG ′s advanced CMOS process technology.

The family supports various operating temperature ranges and has various package types for user flexibility of system design.

The family also support low data retention voltage for battery back-up operation with low da

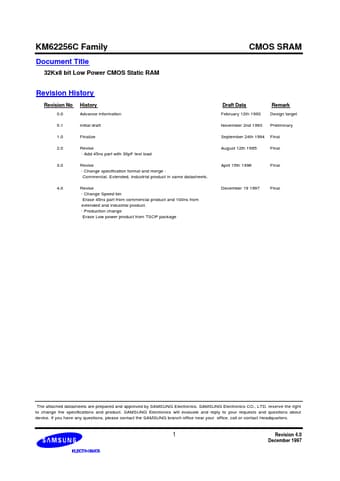

KM62256C Family Document Title 32Kx8 bit Low Power CMOS Static RAM CMOS SRAM Revision History Revision No 0.0 0.1 1.0 2.0 History Advance information Initial draft Finalize Revise - Add 45ns part with 30pF test load Revise - Change specification format and merge : Commercial, Extended, Industrial product in same datasheets.

Revise - Change Speed bin Erase 45ns part from commercial product and 100ns from extended and industrial product.

- Production change Erase Low power product from TSOP pac

62256 Features

* Process Technology : 0.7 µ m CMOS

* Organization : 32Kx8

* Power Supply Voltage : Single 5V ±10%

* Low Data Retention Voltage : 2V(Min)

* Three state output and TTL Compatible

* Package Type : 28-DIP-600, 28-SOP-450, 28-TSOP1 -0813.4F/R CMOS SRAM GE
