Part number: AL2007LA
Manufacturer: Samsung semiconductor
File Size: 267.76KB
Download: 📄 Datasheet
Description: Phase-Locked Loop
— 0.35um CMOS device technology — 3.3 Volt Single power supply — VCO frequency range: 60~170MHz — Output frequency range: 20~170MHz — Jitter ±150ps — Duty ratio 40% to 60.
Hence the following requirements should be satisfied. — The FILTER and FOUT pins must be bypassed for external test. — .

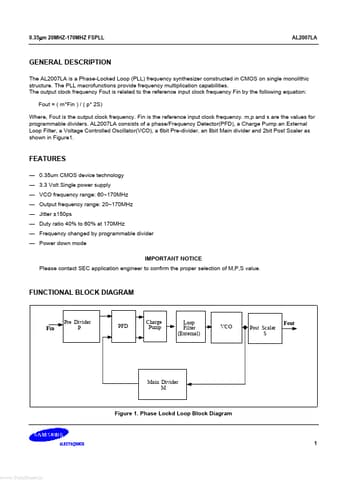

The AL2007LA is a Phase-Locked Loop (PLL) frequency synthesizer constructed in CMOS on single monolithic structure. The PLL macrofunctions provide frequency multiplication capabilities. The output clock frequency Fout is related to the reference inpu.
