KS7332 Datasheet - Samsung semiconductor

KS7332 - digital image signal handling IC

Table 1.

Pin Description No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 Name VD V1 HD VDD CLK RSTN SMI SCLK SCSN GND SMO MSB SO0 SO1 VDD SO2 SO3 SO4 SO5 SO6 SO6 GND SO8 SO9 MDSEL0 MDSEL1 VDD DVC PAL HIGH SCANEN NDO I/O I I I P I I I I I P O I O O P O O O O

KS7332 INTRODUCTION PRODUCT SUMMARY KS7332 is a digital image signal handling IC aimed at improving image contrast and counter light correction, applicable to CCD-using video camera systems such as camcorders and surveillance cameras.

KS7332 receives the CCD output as digital data, analyzes the image's luminance distribution, then outputs a signal with improved dynamic range of luminance and color difference.

It also uses a spatial adaptive filter to remove low intensity noise and output a stab

KS7332 Features

* NTSC/PAL, Normal/Hiband, DVC compatible 10-bit A/D input Digital clamp WDR expansion using non-linear histogram modification Look up table (LUT) transform using

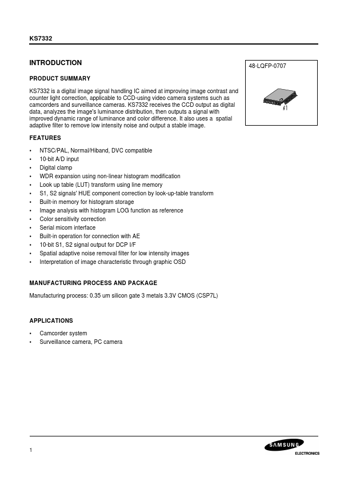

KS7332_Samsungsemiconductor.pdf

Preview of KS7332 PDF
KS7332 Datasheet Preview Page 2 KS7332 Datasheet Preview Page 3

Datasheet Details

Part number:

KS7332

Manufacturer:

Samsung semiconductor

File Size:

207.55 KB

Description:

Digital image signal handling ic.
