KS9286B-L - DIGITAL SIGNAL PROCESSOR for CDP

The KS9286B-L by Samsung semiconductor is a DIGITAL SIGNAL PROCESSOR for CDP. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the KS9286B-L DIGITAL SIGNAL PROCESSOR for CDP datasheet (Samsung semiconductor).

Datasheet Details

Part number KS9286B-L
Manufacturer Samsung semiconductor
File Size 298.98 KB
Description DIGITAL SIGNAL PROCESSOR for CDP
Datasheet download datasheet KS9286B-L_Samsungsemiconductor.pdf

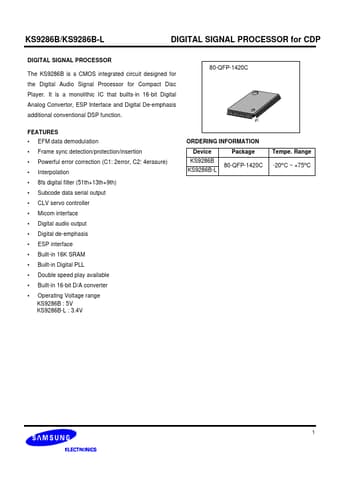

Additional preview pages of the KS9286B-L datasheet.

KS9286B-L Product details

Description

DIGITAL SIGNAL PROCESSOR for CDP PIN NO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 SYMBOL AVDD1 DPDO DPFIN DPFOUT CNTVOL AVSS1 DATX XIN XOUT WDCHO LRCHO ADATAO DVSS1 BCKO C2PO VREFL2 VREFL1 AVDD2 RCHOUT LCHOUT AVSS2 VREFH1 VREFH2 EMPH LKFS S0S1 RESET /ESP SQCK IO O I O I O I O O O O O O I I O O I I O O O I I I Analog VCC1 DESCRIPTION Charge pump output for Digital PLL Filter input for Digital PLL Filter output for Digital PLL VCO control voltage for Digit
